Built Right From the Ground Up
Scale Foundation Design & Site Planning
The performance of your scale starts below the surface. Superior Processing & Weighing designs scale foundations that support long-term accuracy, structural stability, and compliance.
From soil conditions to drainage and site layout, we engineer foundations built for reliable performance from day one.
Plan Your Scale Foundation With Confidence
Planning a new scale installation? Start with the right foundation. Request a quote today.
Why Foundation Design Matters
Even the highest-quality scale will fail if the foundation is not properly designed. We evaluate critical factors including:
- Soil stability and bearing capacity
- Terrain and grade conditions
- Drainage and water management
- Local regulations and compliance requirements
- Scale type and application
Our goal is to prevent settling, shifting, and structural issues that can impact calibration and performance.

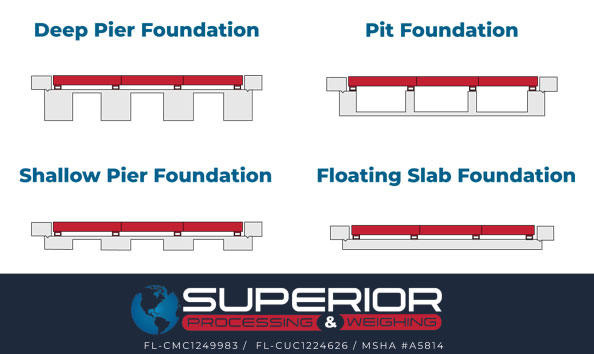

Foundation Types at a Glance
| Foundation Type | Best For | Key Considerations |
|---|---|---|
| Deep Pier | Cold climates | Extends below frost line, requires 2,500–3,000 PSF soil capacity |
| Shallow Pier | Moderate climates | Cost-effective where frost is not a concern |
| Floating Slab | Stable soil conditions | Continuous pour, requires minimum 1,500 PSF |
| Pit Foundation | Space-constrained sites | 2–6 ft depth, requires drainage and compliance planning |
Drainage and Site Planning
Water is one of the biggest threats to scale performance. We design every site to protect your investment:
- Proper grading to direct runoff away from the scale
- Drainage systems for pit installations
- Planning for heavy rain and site conditions
- Protection against corrosion and structural damage
Getting drainage right upfront prevents costly repairs and downtime later.
Site Layout & Long-Term Performance
Foundation design goes beyond concrete. It impacts how your operation functions day to day. We consider:
- Traffic flow and vehicle approach
- Space constraints and accessibility
- Safety and inspection access
- Future maintenance requirements
A well-designed site improves efficiency and extends the life of your scale.
Coordinated Design & Installation
We work closely with contractors and installation teams to ensure your foundation is built to exact specifications. Support includes:
- Foundation and ramp design guidance

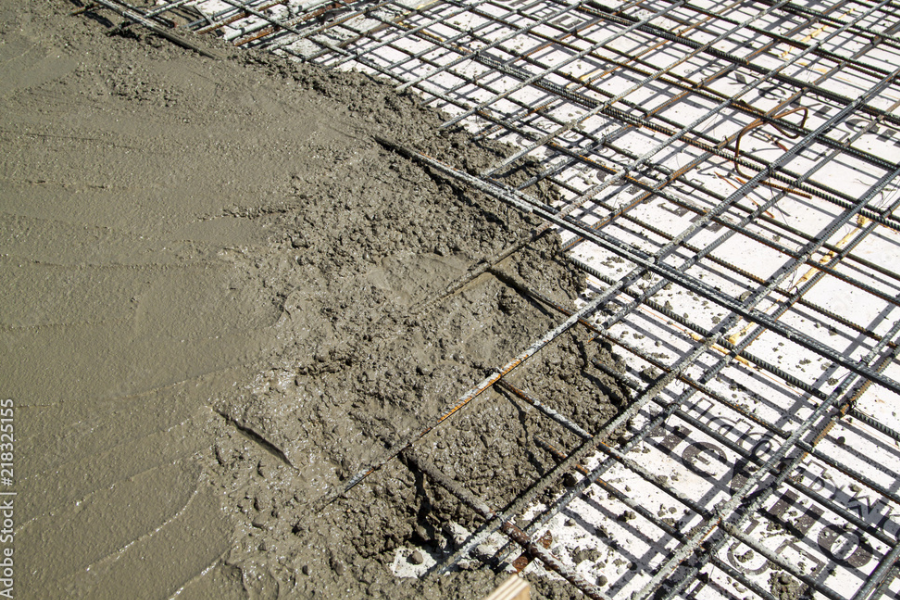

- Concrete specifications and curing timelines
- Coordination with local contractors
- Compliance with industry and local standards
This ensures your scale installation proceeds smoothly and performs as expected.
Why Choose Superior Weighing & Processing for Installation
- Deep expertise in scale foundations and site planning
- Proven designs for long-term accuracy and durability
- Guidance through complex installation decisions
- Support from planning through final calibration
- Trusted partner for industrial and commercial applications
We ensure your scale is installed right the first time.
